About the Application
Polly KG Explorer
Polly KG Explorer is an interactive tool and a part of the Polly KG ecosystem on Polly. It is designed to help researchers explore and analyze the Polly Knowledge Base, which consists of harmonized biomedical data. It enables users to uncover relationships between biological entities and generate data-driven hypotheses.

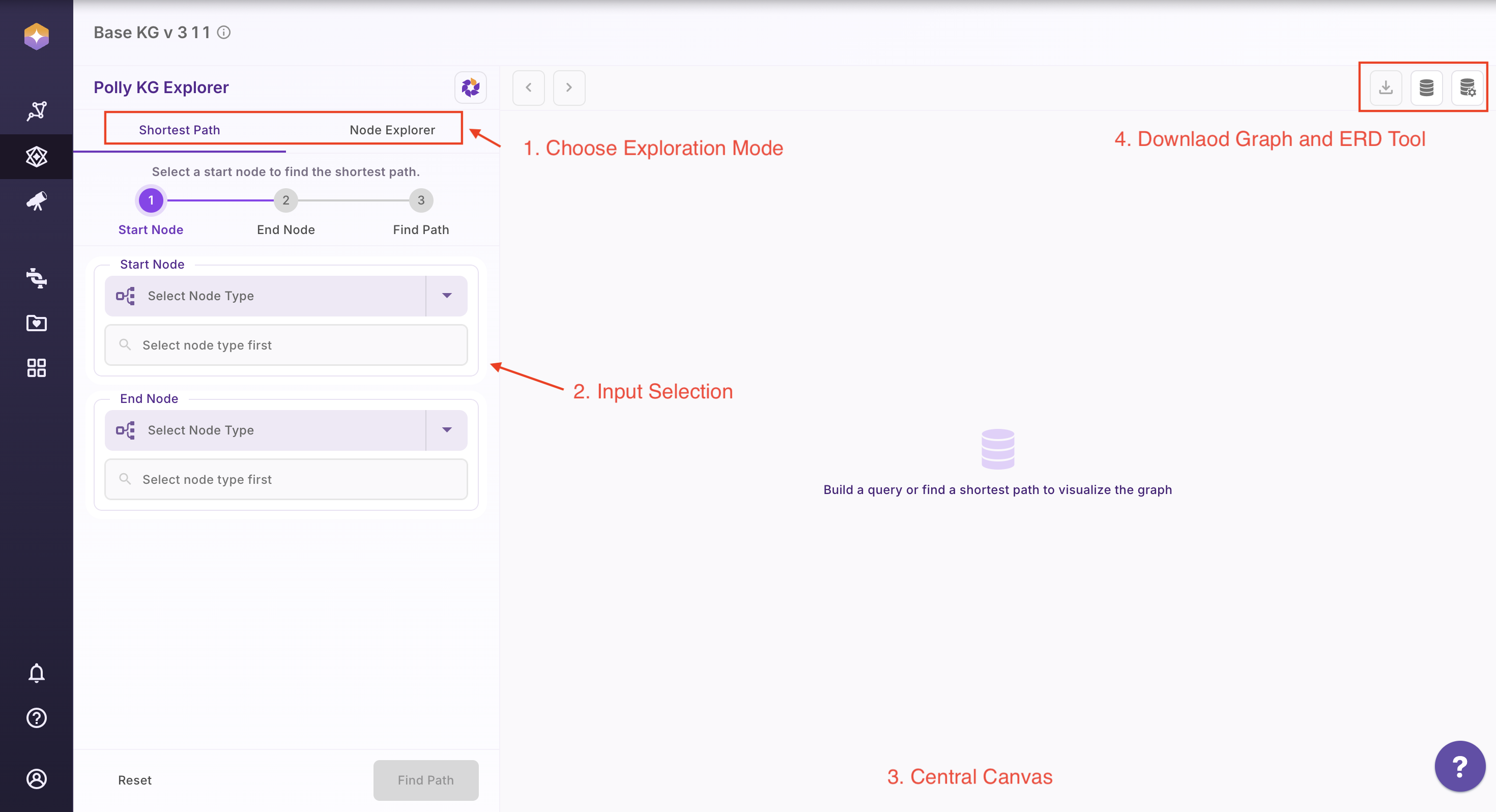

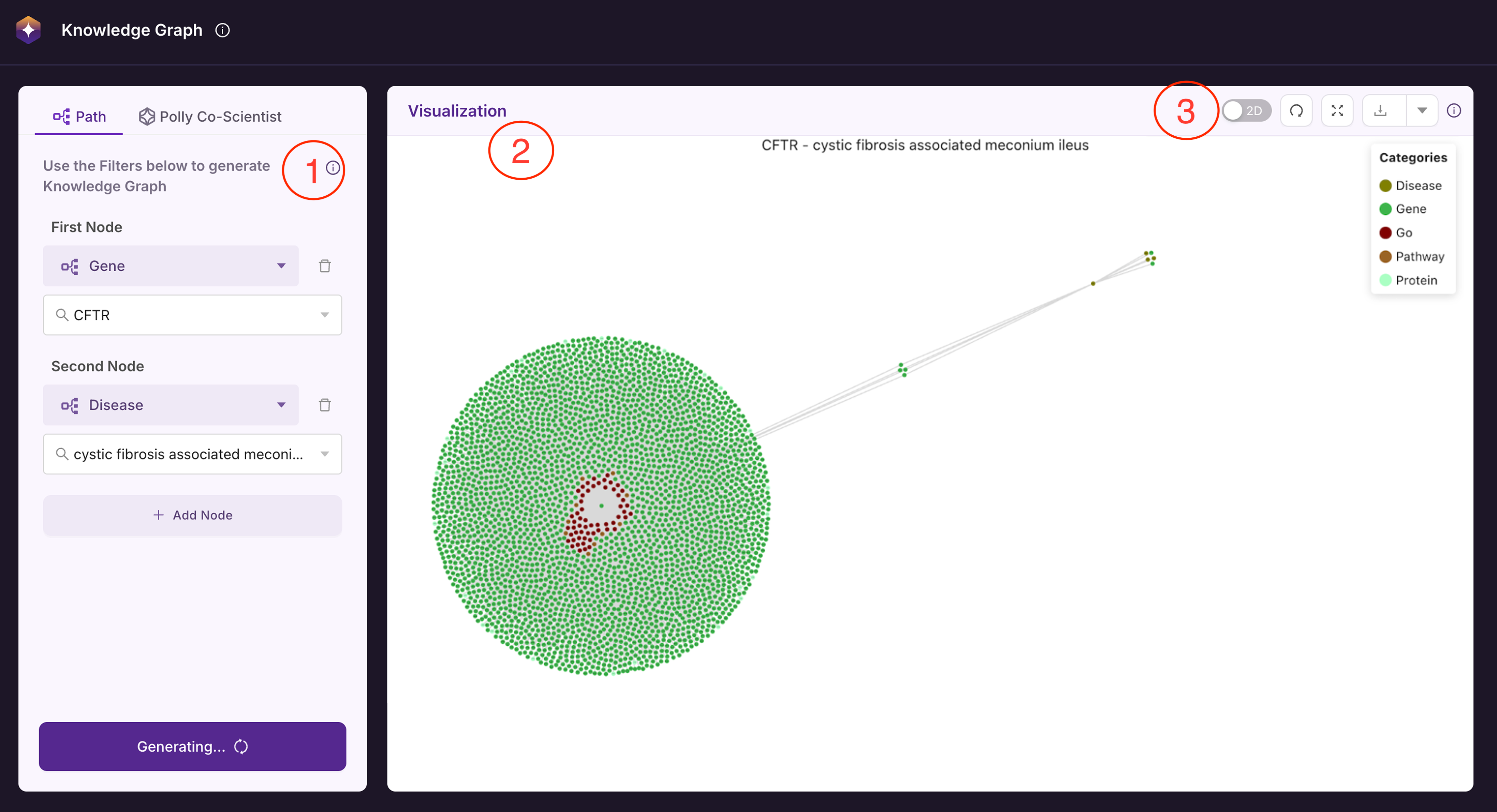

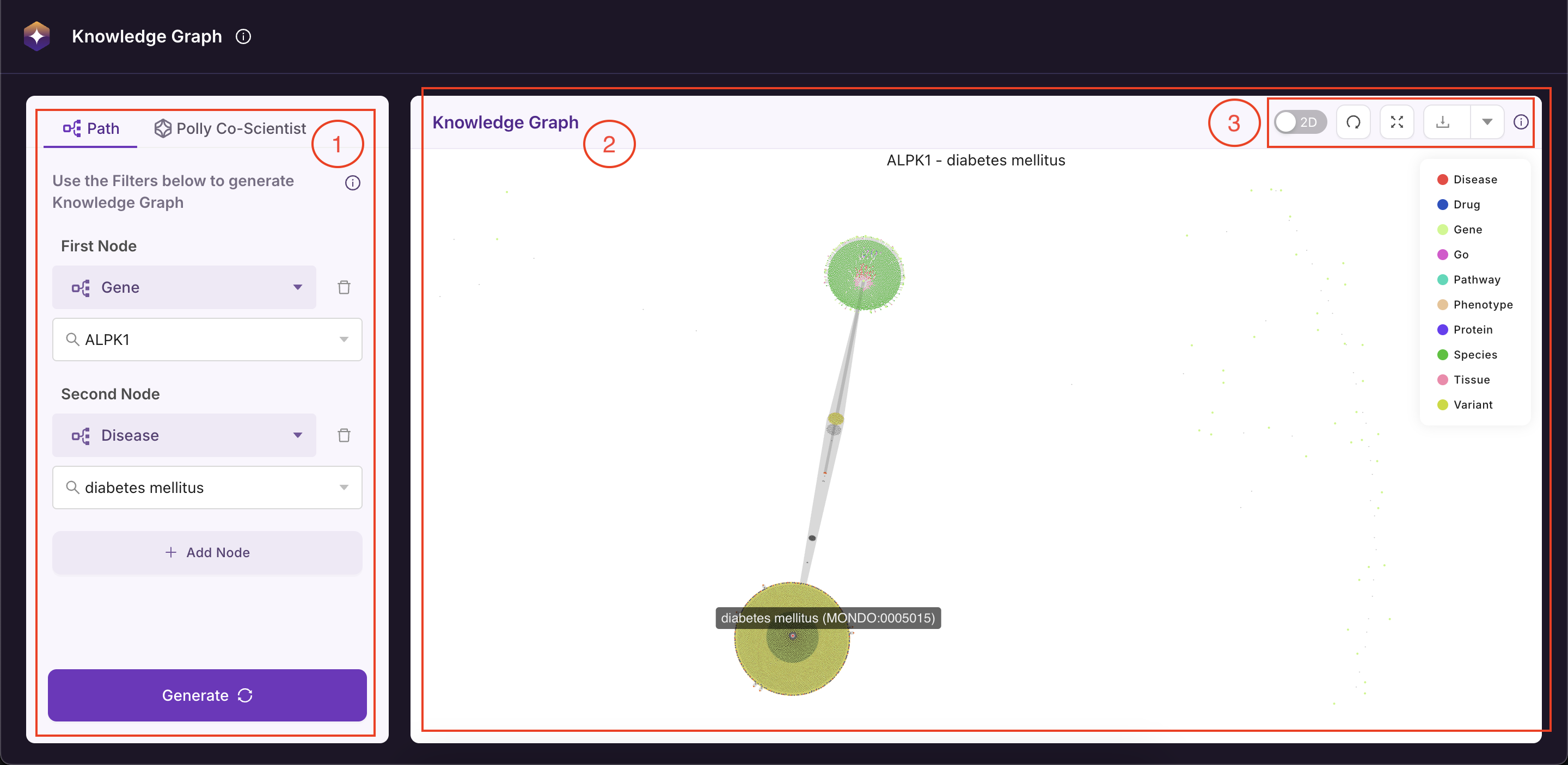

Layout of Polly KG Explorer
The Polly KG Explorer interface is organized into distinct regions, each serving a specific functional role in the exploration workflow.

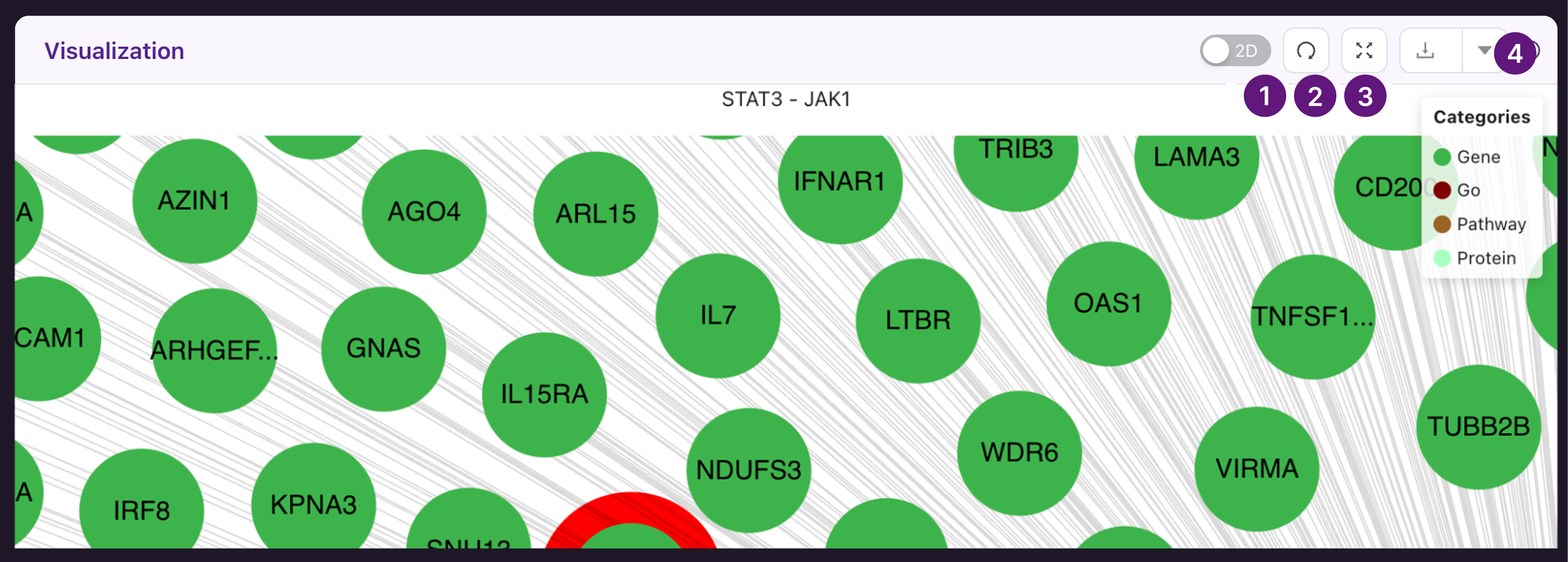

| S. No. | Region | Purpose |
|---|---|---|
| 1 | Top Left Tabs | Choose the exploration mode: Shortest Path or Node Explorer |
| 2 | Left Panel | Input selection (node type, select associations) and CTA buttons |
| 3 | Centre Canvas | Display graph results and interactive visualizations |
| 4 | Top Right Buttons | Access download options and the Knowledge Graph schema tools |

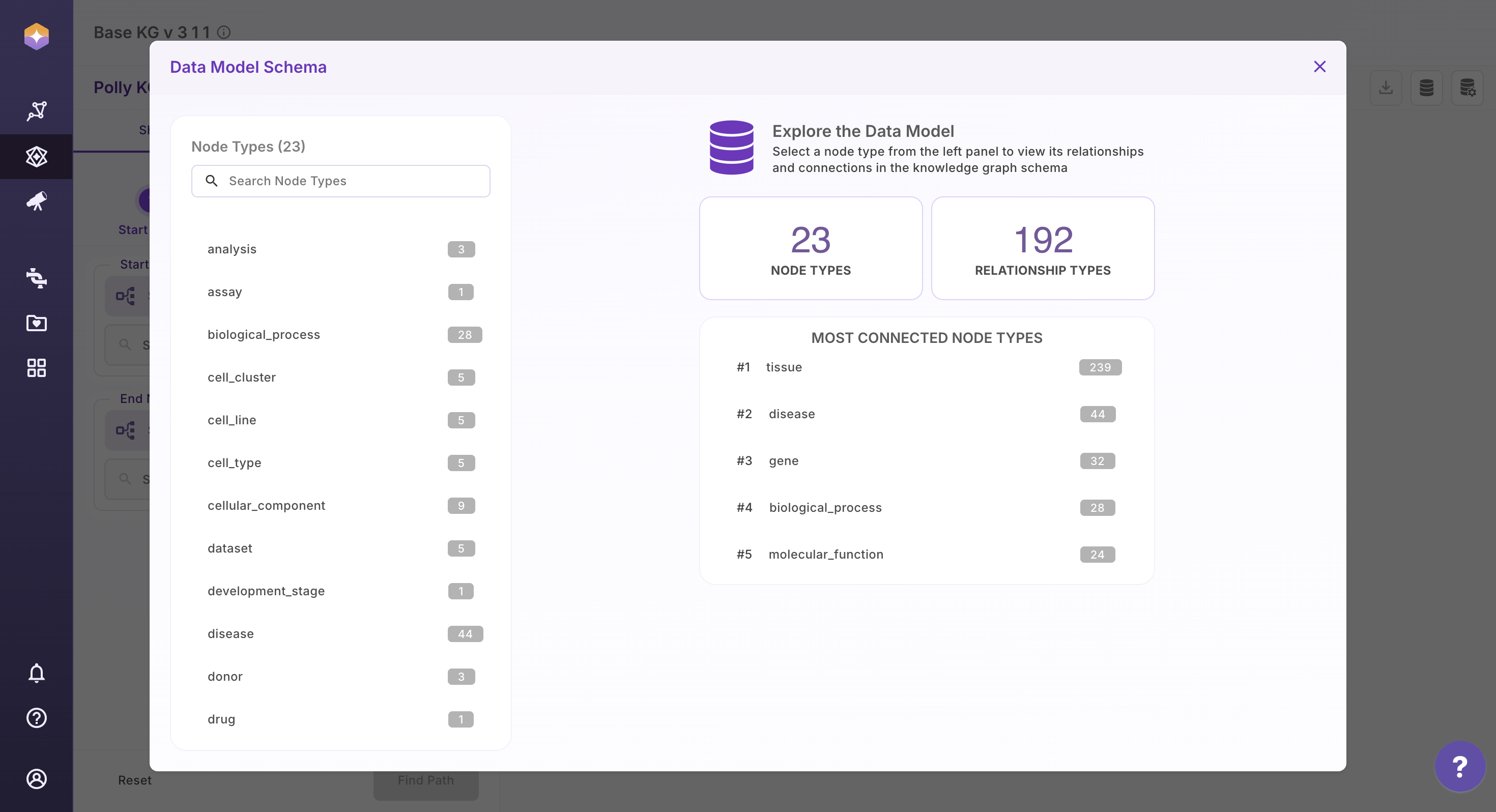

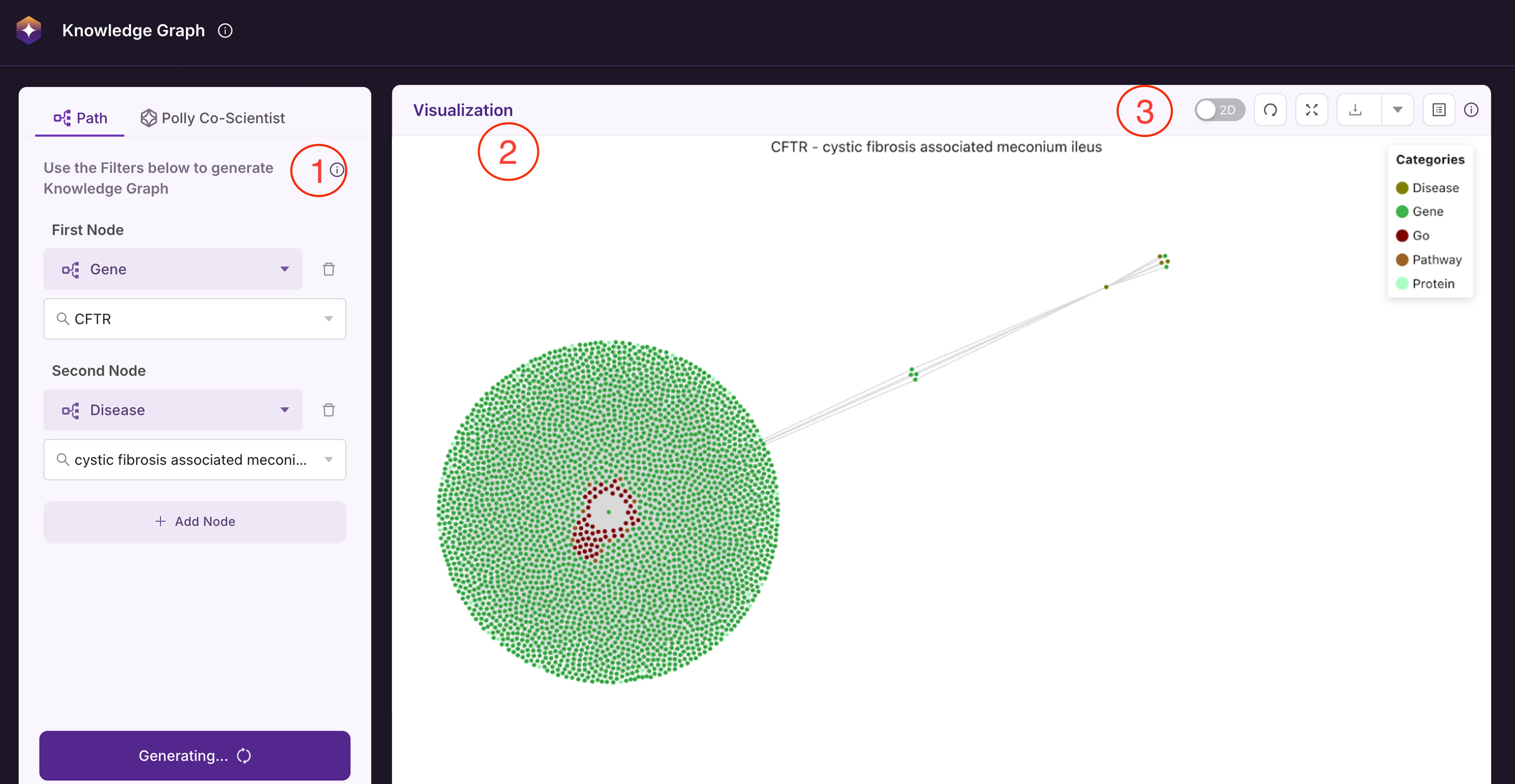

1. View Schema
Select the database icon in the top-right corner to open the schema view.
The schema panel displays:
-
All available node types along with the count of their incoming and outgoing associations
-
The different relationship types present in the Knowledge Graph
-
The properties and data types of each property in a given associations
This view provides a clear understanding of the Knowledge Graph structure, helping users navigate data confidently and explore relationships more effectively.
Video on User interaction
2. Shortest Path
The Shortest Path feature helps you identify the most direct connection between two entities in the Knowledge Graph. In graph theory, a shortest path problem is the problem of finding a path between two nodes in a graph such that the sum of the weights of its constituent edges is minimized.
Within the Polly KG Explorer, this feature is powered by Neo4jās native shortest path algorithms.
Key Distinction:
-
shortestPath(...)ā returns one shortest path -
allShortestPaths(...)ā returns all paths tied for minimum hop length
Detailed technical documentation for these methods is available in the Neo4j Cypher manual.
How to Use Shortest Path

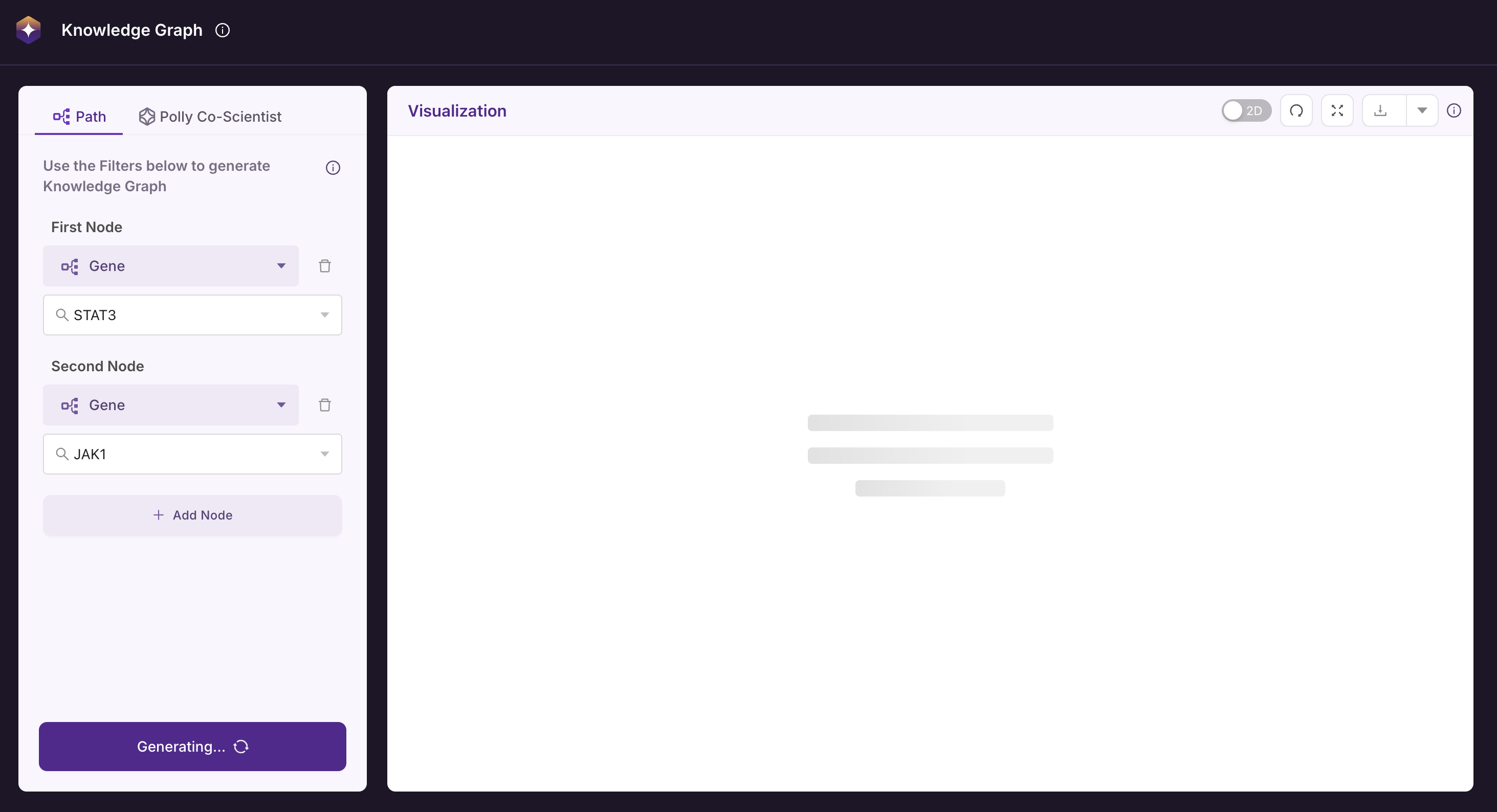

- Open the Shortest Path tab

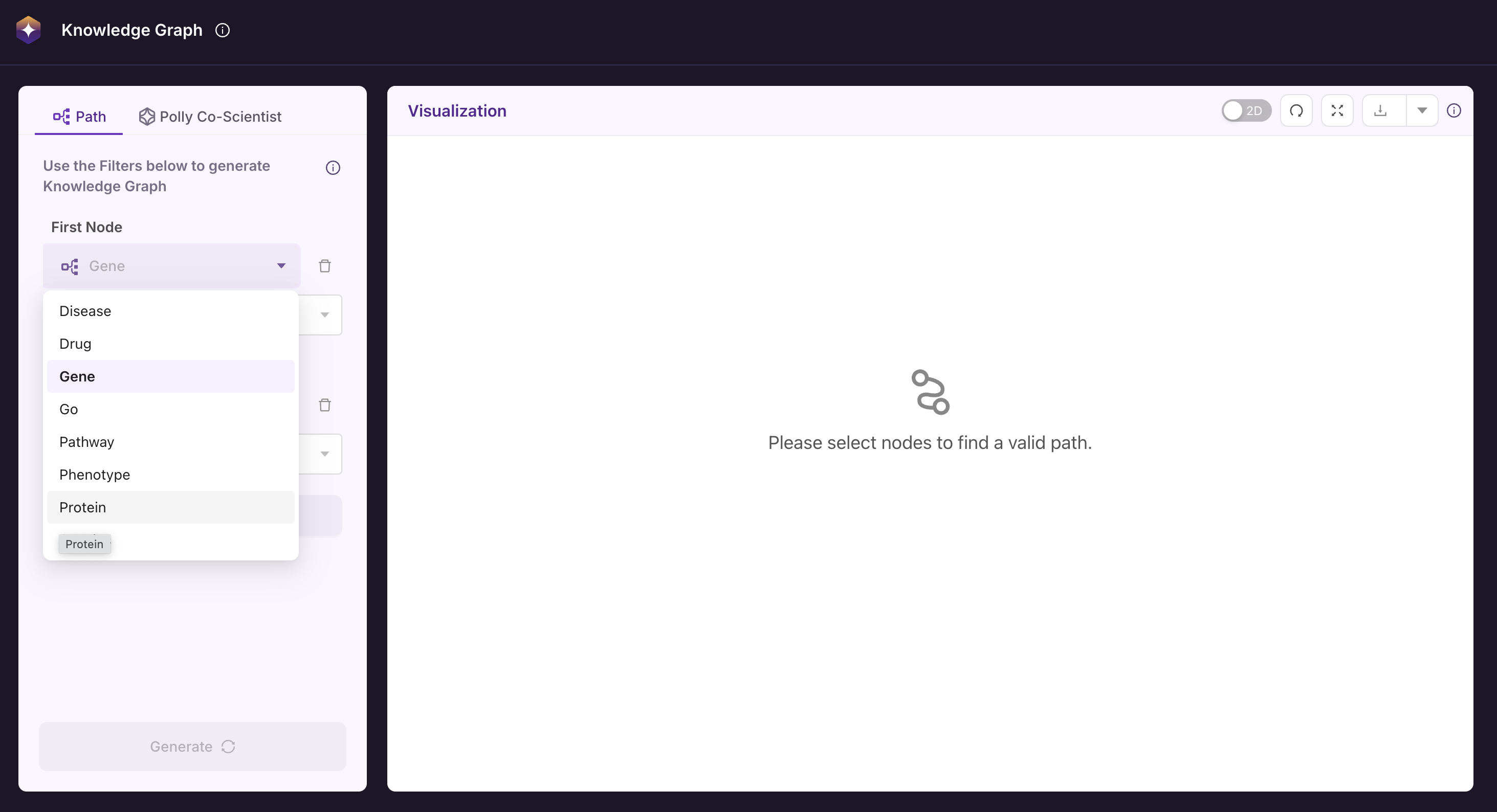

- Select the start node type from the dropdown

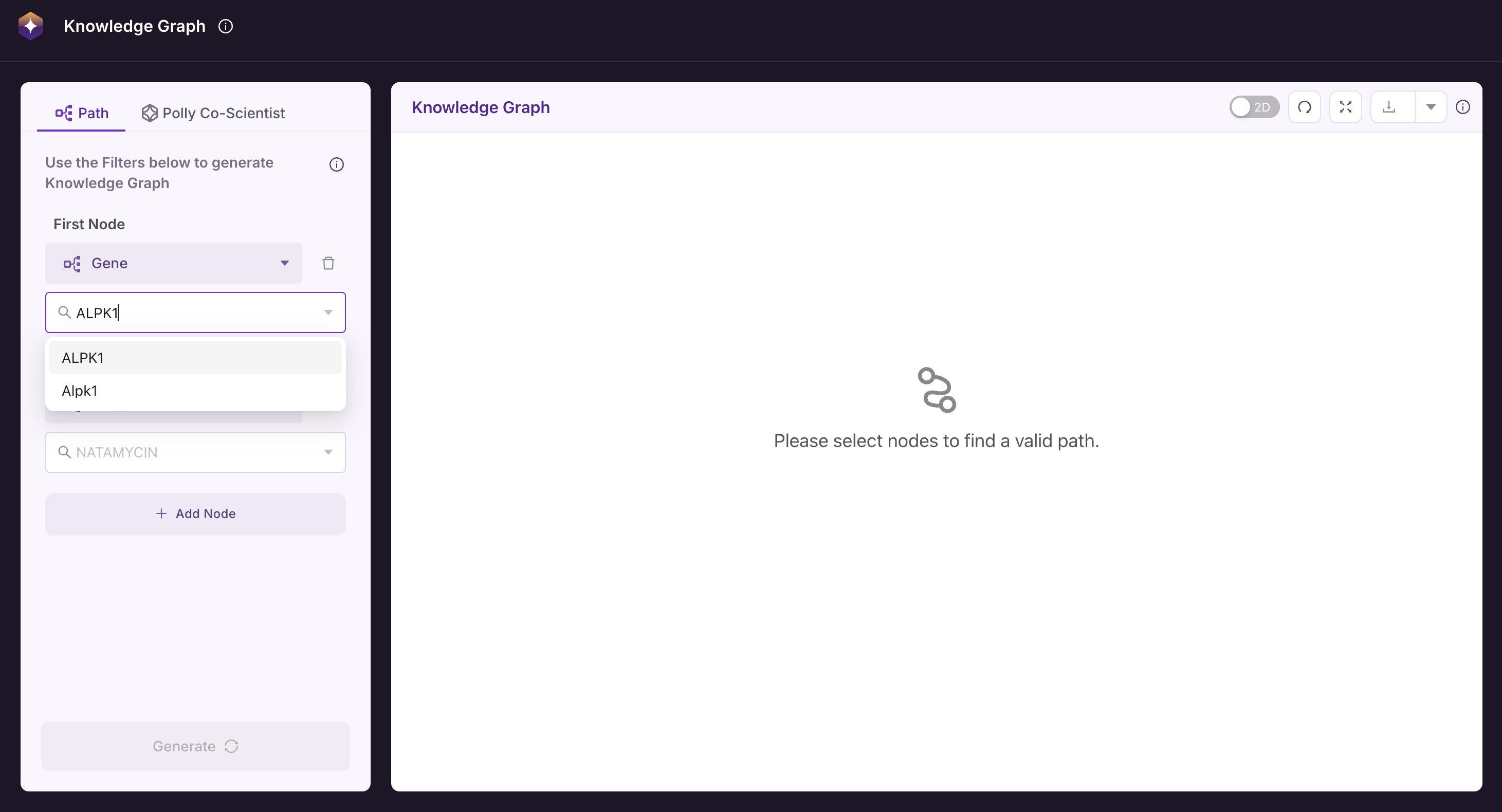

- Enter the search term for the start node
- Select the end node type from the dropdown
- Enter the search term for the end node
- Click Find Path to generate the result
Once the graph is rendered, you can:
-
Click View Query to see the Cypher query used
-
Use the Reset button to clear selections and start a new search

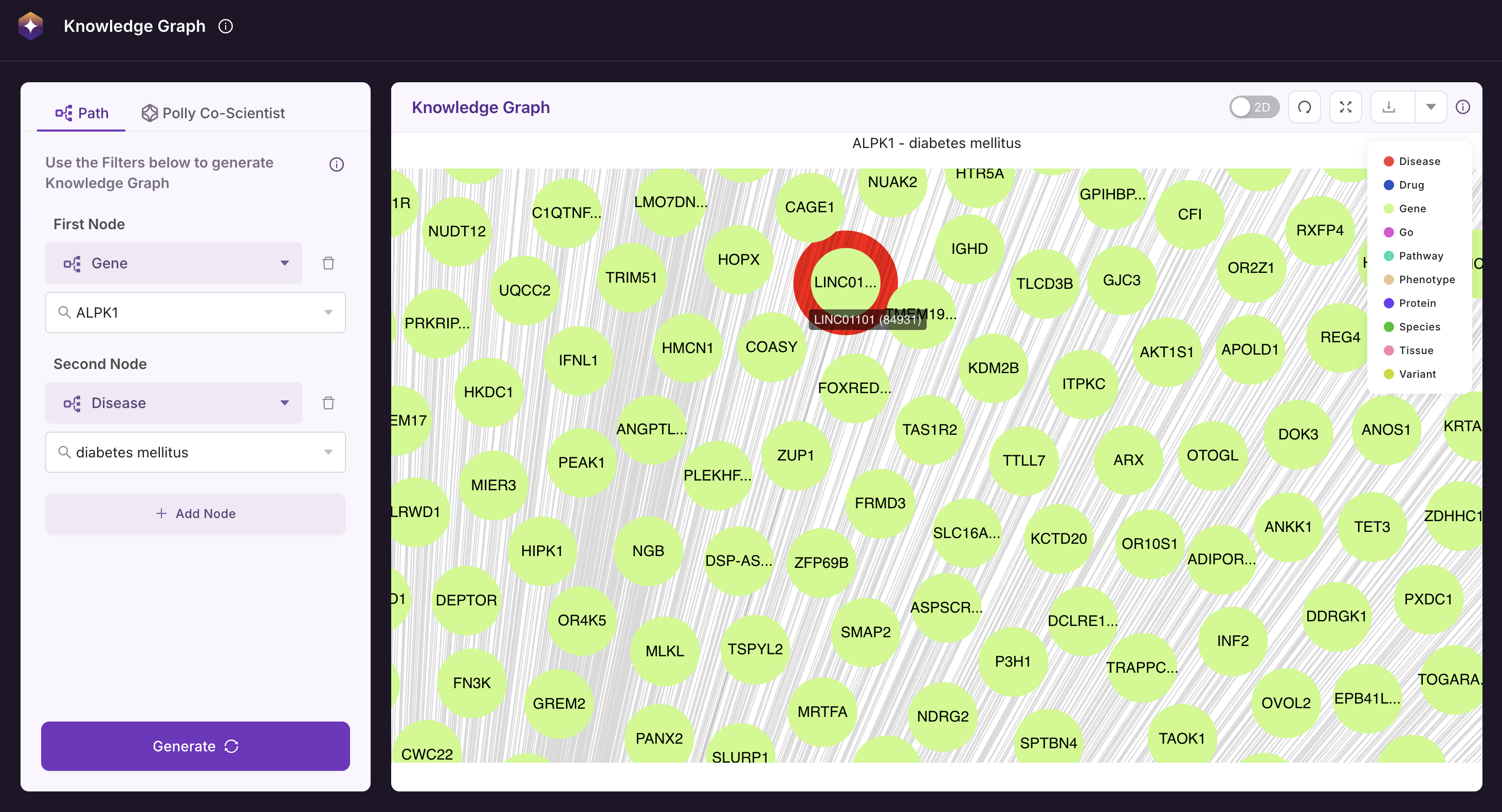

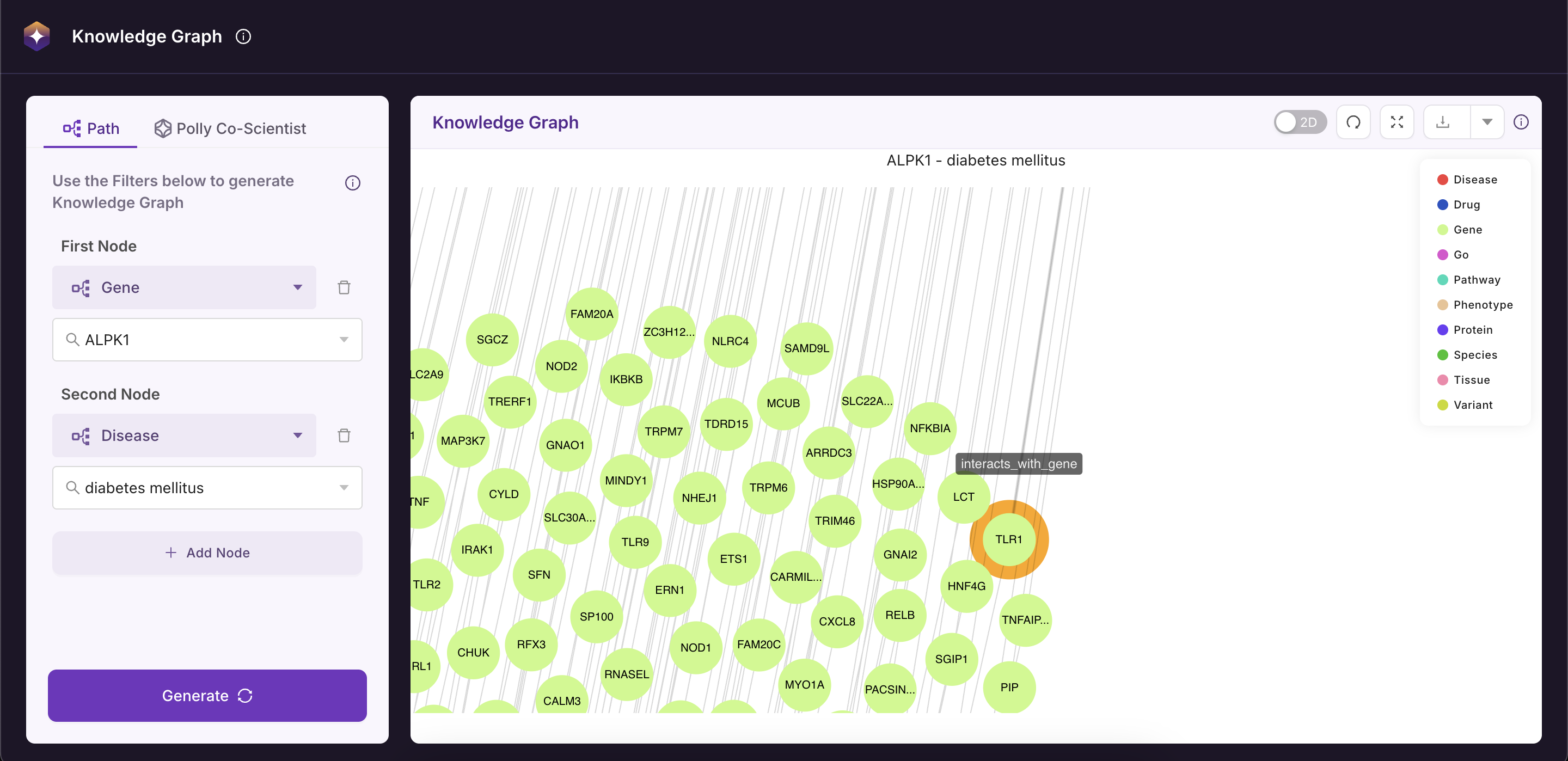

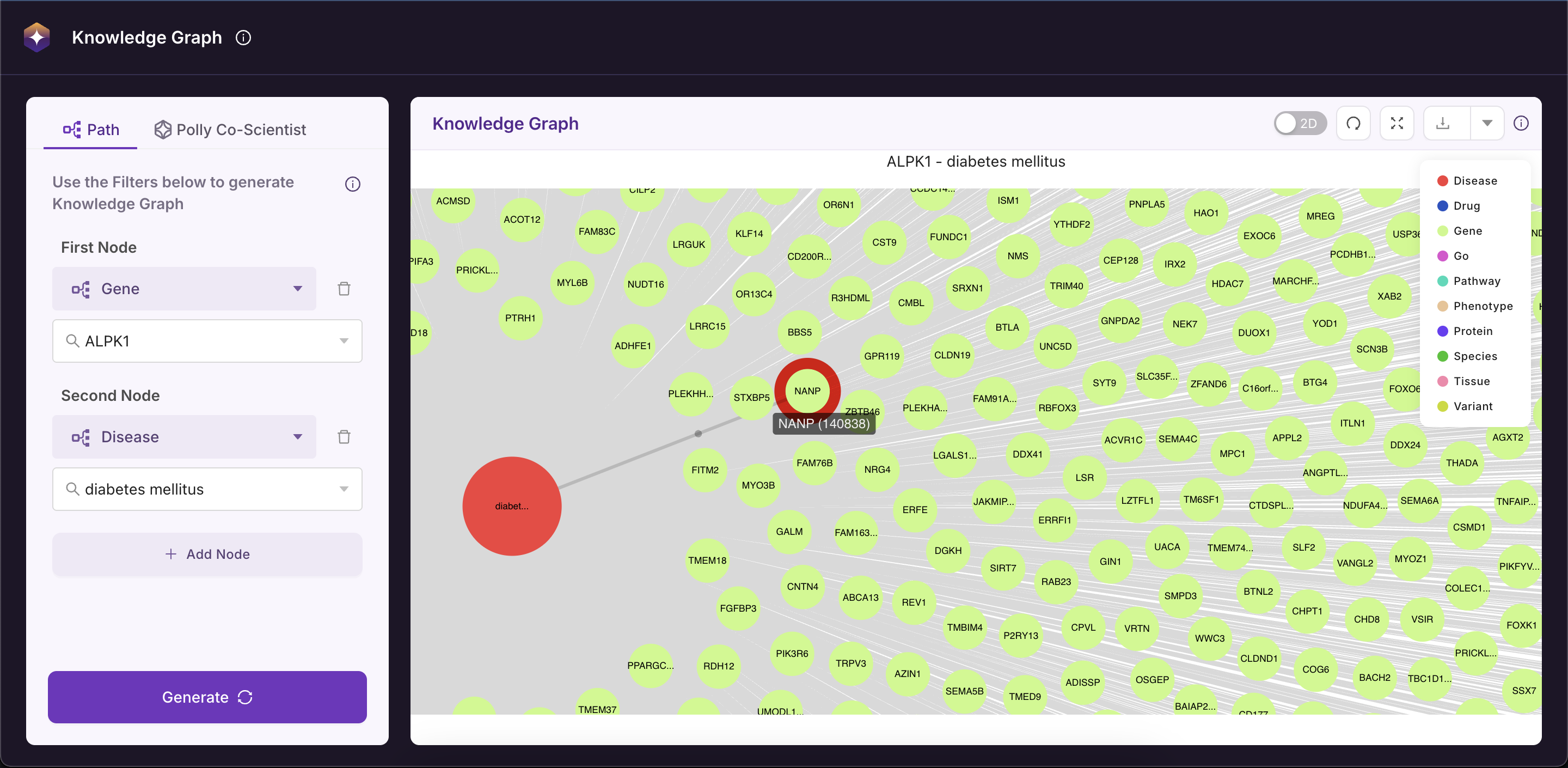

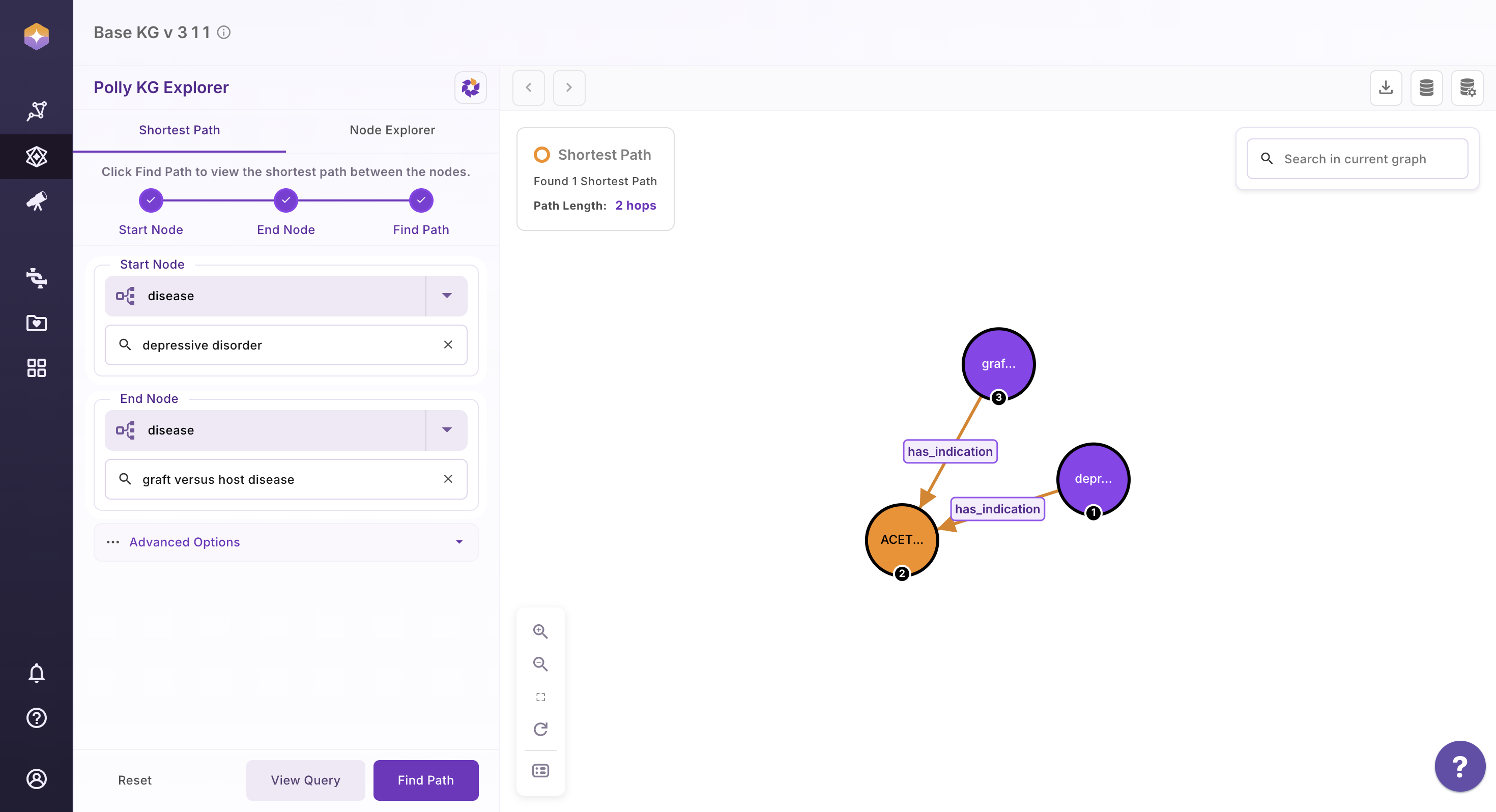

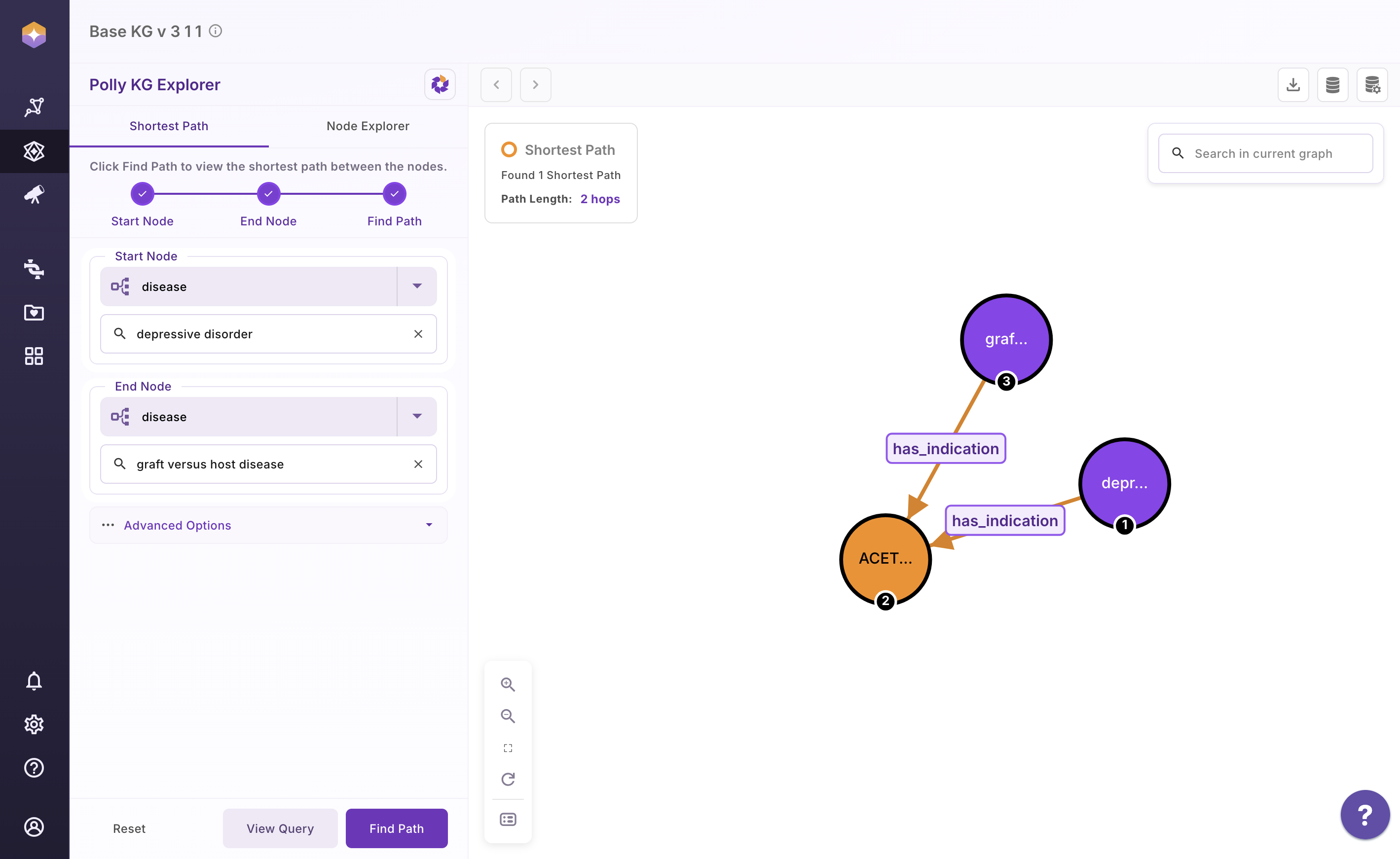

An example output graph is shown below for reference.

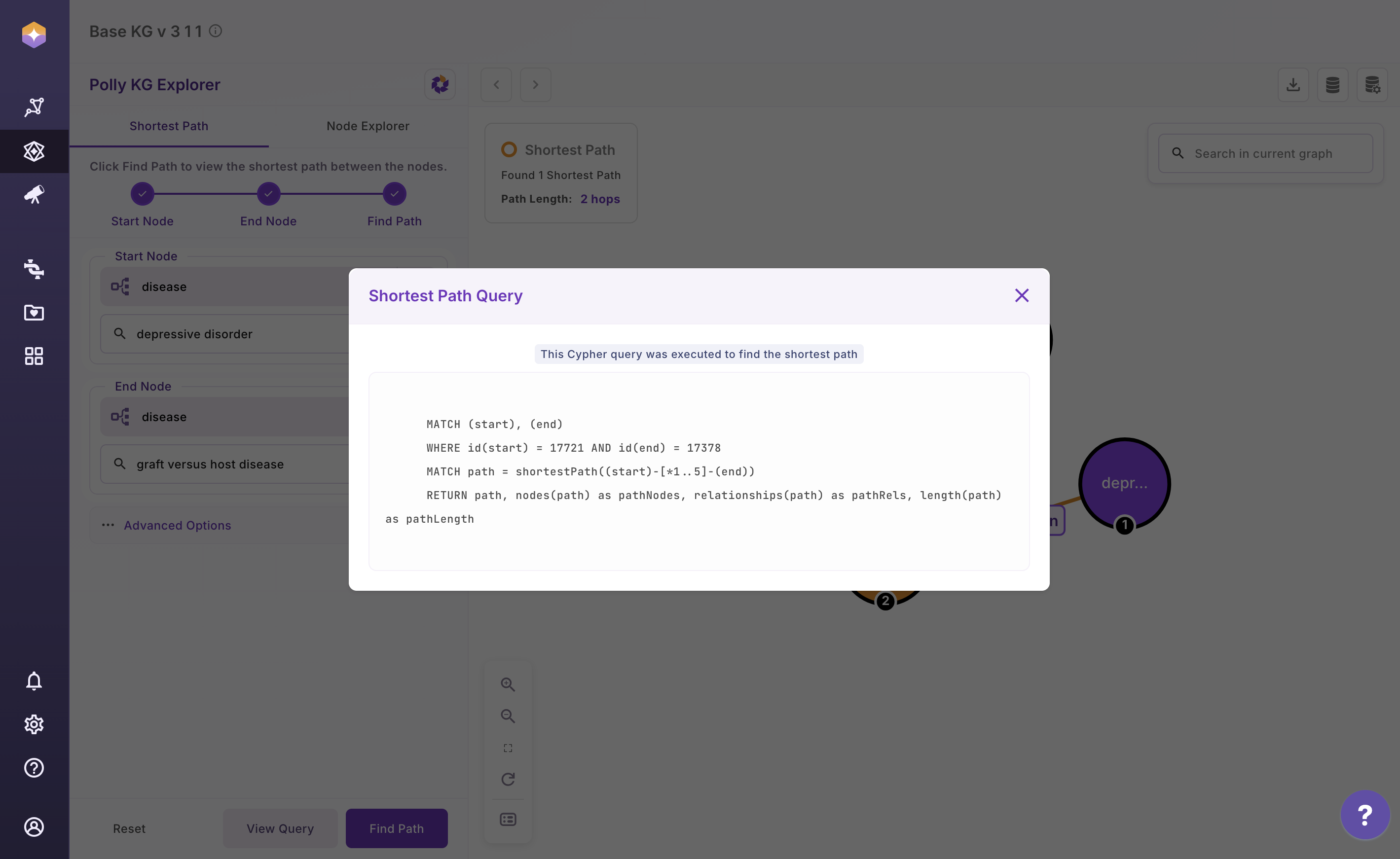

The shortest path query that was executed:
Query Explanation for Shortest Path
MATCH (start), (end)
any node in the graph as `start`
any node in the graph as `end`
WHERE id(start) = 17721 AND id(end) = 17378
internal db ids for the node terms as specified by the user
MATCH path = shortestPath((start)-[*1..5]-(end))
RETURN path,
nodes(path) as pathNodes,
relationships(path) as pathRels,
length(path) as pathLength
| Output | What it will fetch |
|----------------------|----------------------------------------------|
| `path` | Full visual path |
| `nodes(path)` | Ordered list of all nodes in the path |
| `relationships(path)`| Ordered list of all relationships |
| `length(path)` | Number of edges in the path |
Video on User interaction
Scientifc Literature connecting Depressive Disorder & graft versus host disease to Acetylcysteine
- Depressive Disorder:
[ScienceDirect article](https://www.sciencedirect.com/science/article/abs/pii/S0163834324002238)
- Graft-Versus-Host Disease (GVHD)
An immune system disorder that occurs after allogeneic hematopoietic stem cell transplant and is a reaction of donor immune cells against host tissues. Activated donor T cells damage host epithelial cells after an inflammatory cascade that begins with the preparative regimen. [NCBI](https://www.ncbi.nlm.nih.gov/)
Literature review shows studies done in both Depressive disorder and graft versus host disease involving NAC
For All Shortest Path
To discover all possible shortest connections between two nodes:
-
Click on Advanced Options
-
Click on Find all Shortest Path, or
-
Limit the search depth (maximum of 5 hops)
-
Click Find Path
-

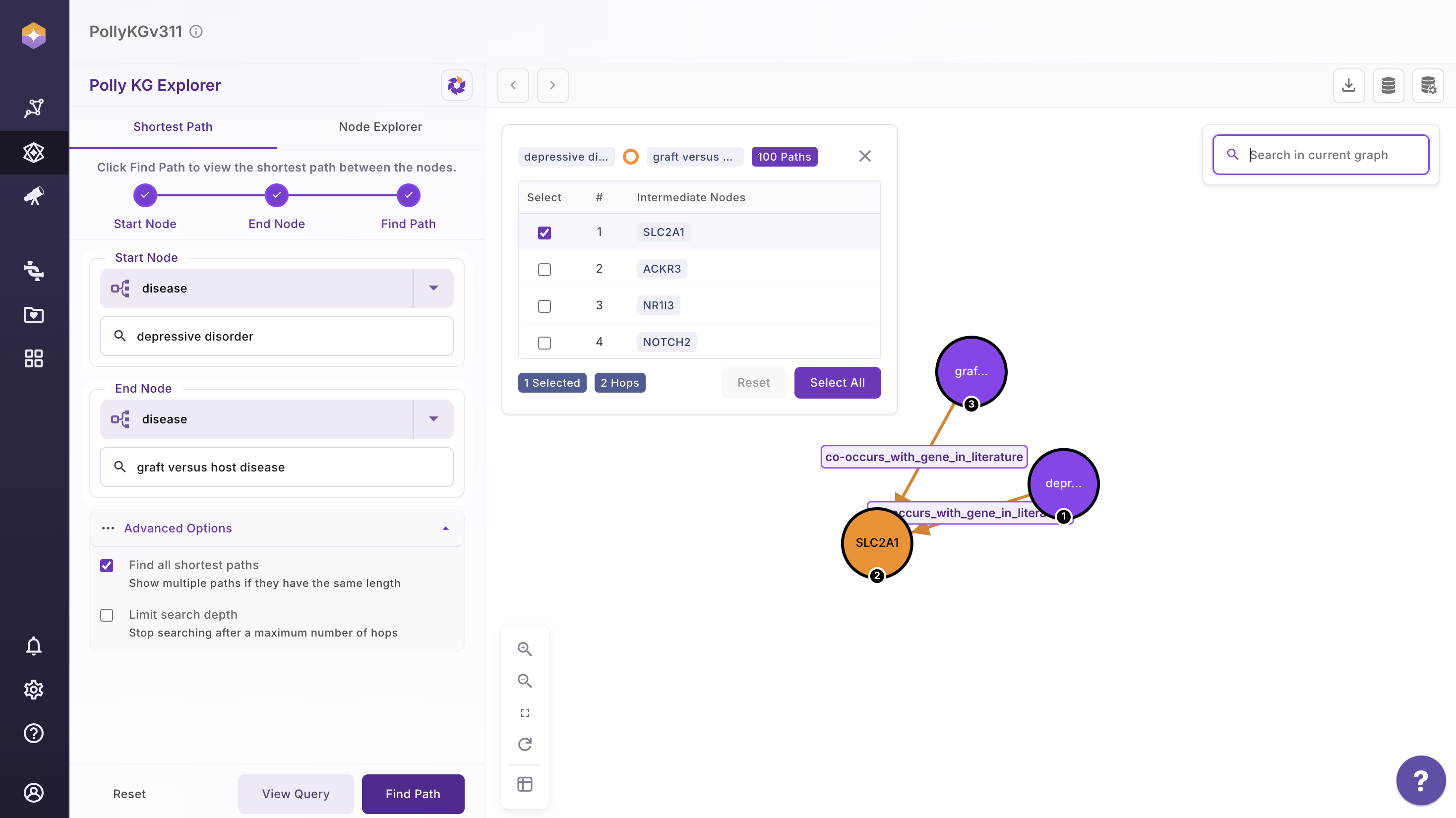

Users are shown a table with all paths as a dataframe. Scroll and identify the path you are interested in to visualize as a sub-graph.
-
Users can also verify the query by clicking on View Query once the graph is rendered
-
Use the Reset Button to remove your previous selections and start afresh

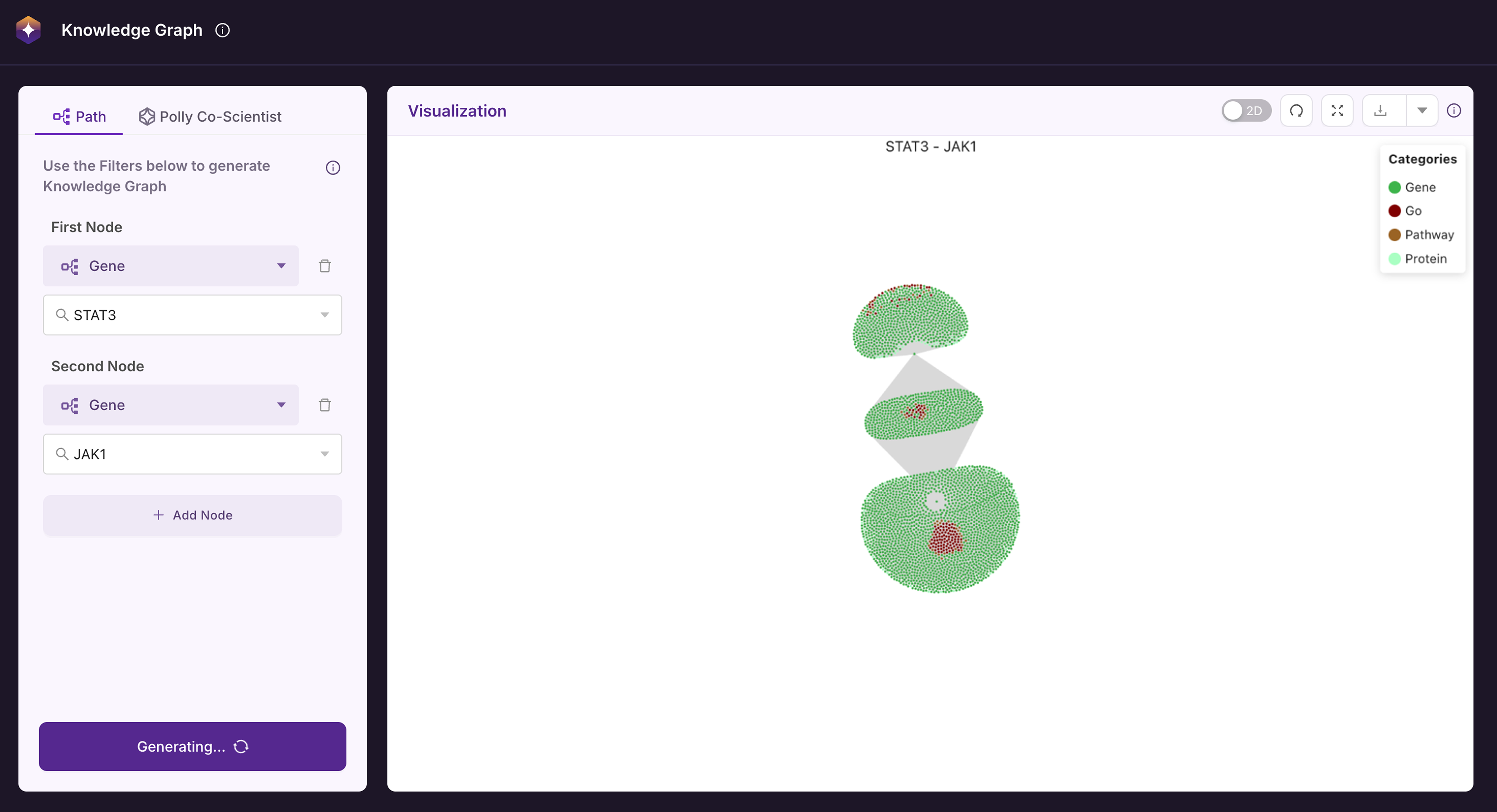

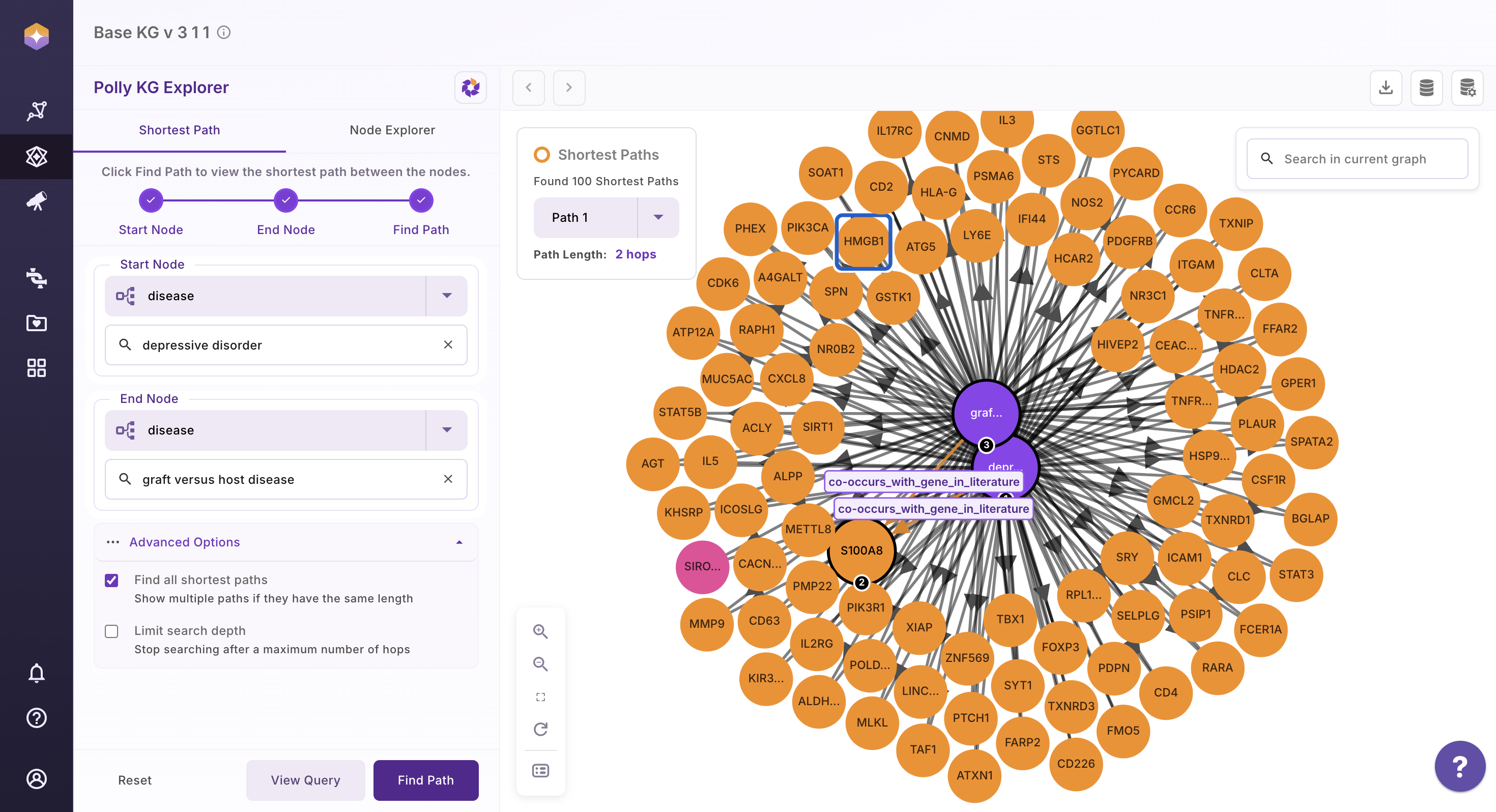

Shown below is an example graph with all shortest paths.
Users can Select All and render all shortest path and reset using the Reset button

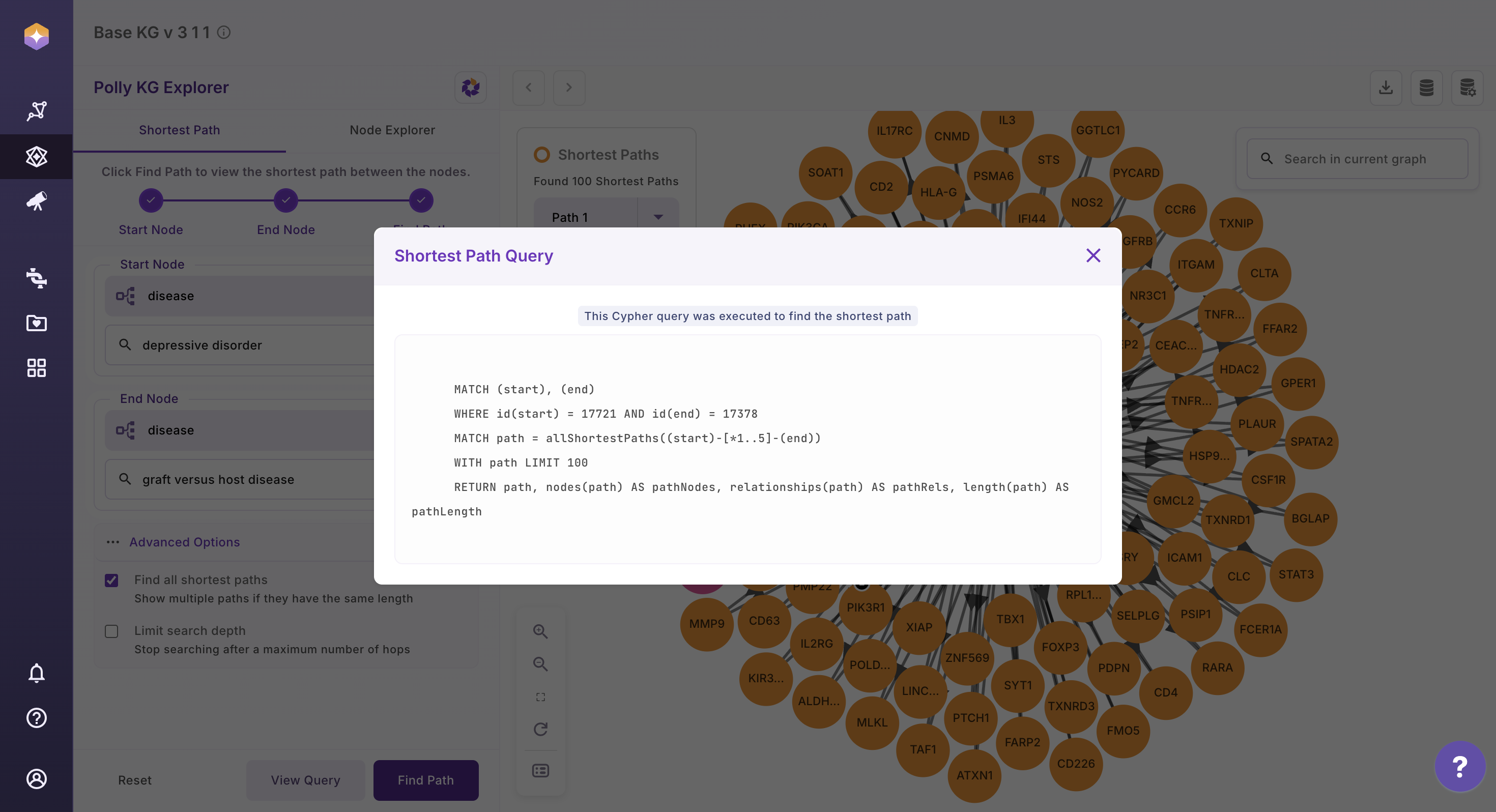

Query Explanation for All Shortest Path
MATCH (start), (end)
any node in the graph as start
any node in the graph as end
WHERE id(start) = 17721 AND id(end) = 17378
internal db ids for the node terms as specified by the user
MATCH path = allShortestPaths((start)-[*1..5]-(end))
| Syntax | What it does |
|----------------------|---------------------------------------------------|
| `allShortestPaths` | Returns every path with the minimum possible length |
| `(start)` | Starting node (ID `17721`) |
| `[*1..5]` | Any relationship type, 1 to 5 hops |
| `-` | Undirected |
| `(end)` | End node (ID `17378`) |
WITH path LIMIT 100
Caps the result set to at most 100 shortest paths to prevent UI crashes
RETURN path,
nodes(path) AS pathNodes,
relationships(path) AS pathRels,
length(path) AS pathLength
| Output | What it will fetch |
|-----------------------|----------------------------------|
| `path` | Visual graph path |
| `nodes(path)` | Ordered list of nodes |
| `relationships(path)` | Ordered list of relationships |
| `length(path)` | Hop count |
Video on User interaction

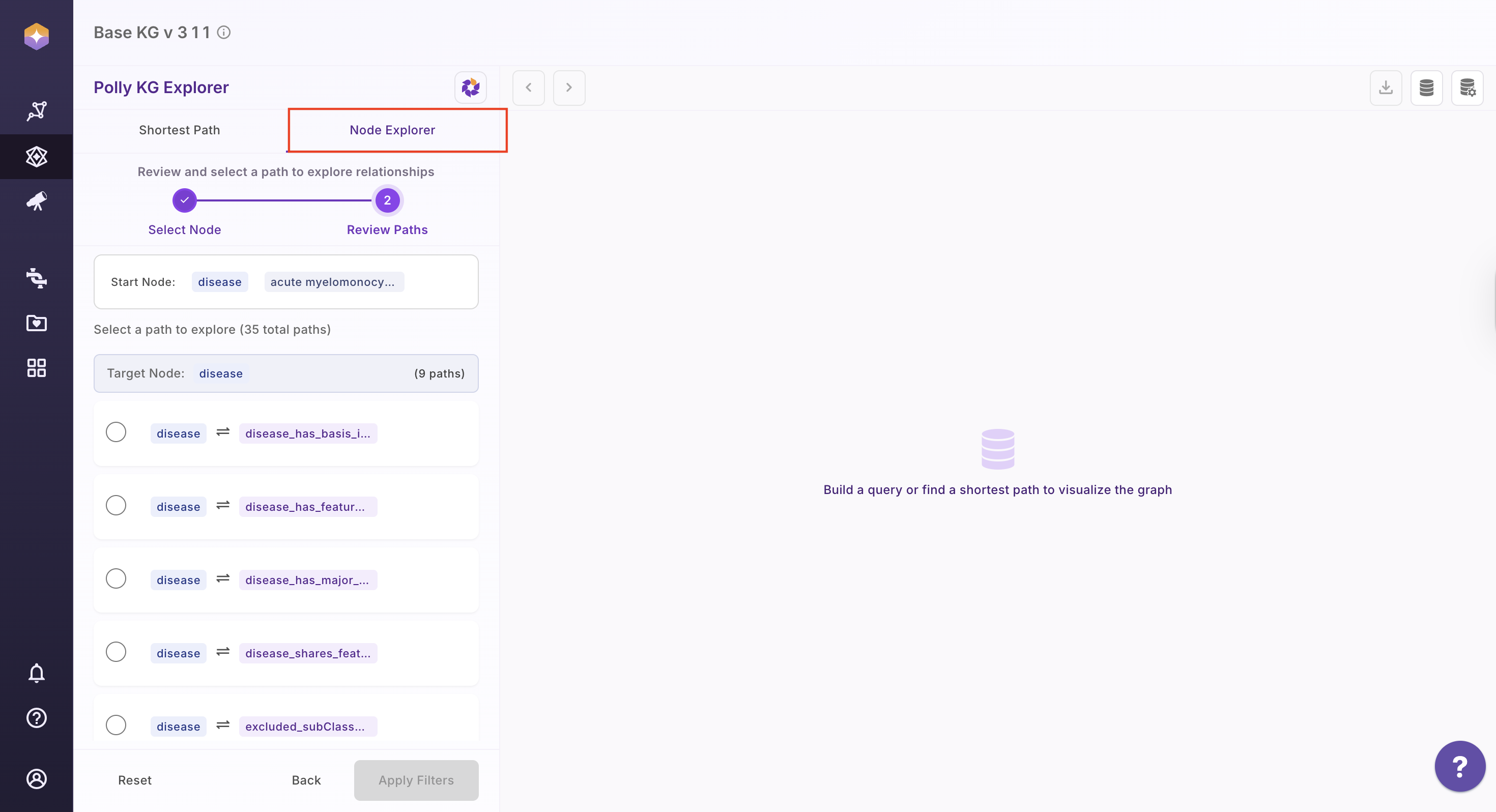

3. Node Explorer
The Node Explorer allows you to visualize a selected node and interactively expand its immediate neighbors. You can also apply filters based on properties stored on relationships to refine what is displayed in the graph.
How to Use Node Explorer
- Click on the Node Explorer tab
- Select the node type from the dropdown

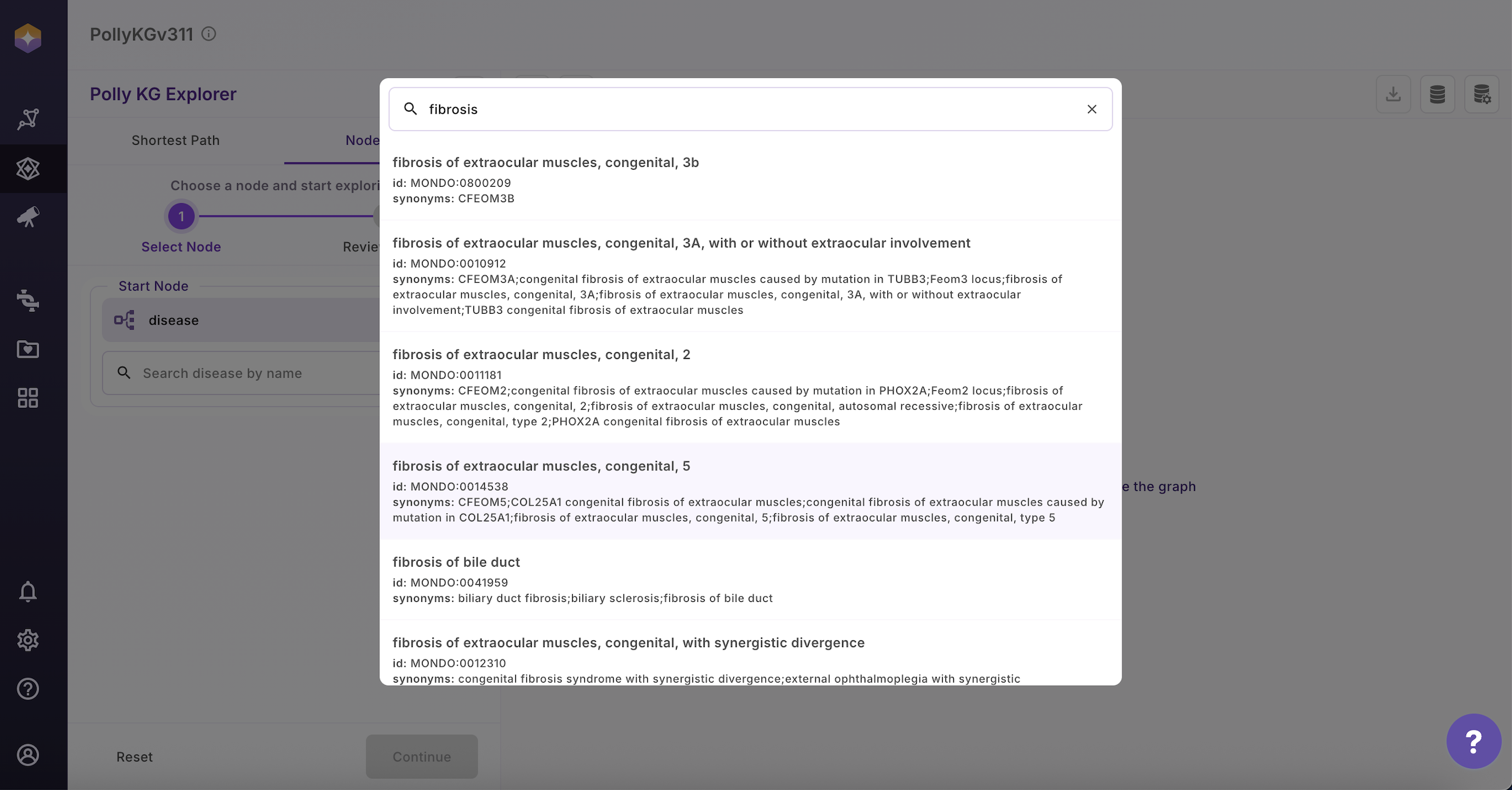

- Select the target Node and a modal opens showing additional properties for that node that enables users to select nodes of interest
- Select the node you are interested in
- Select the association that you are interested in

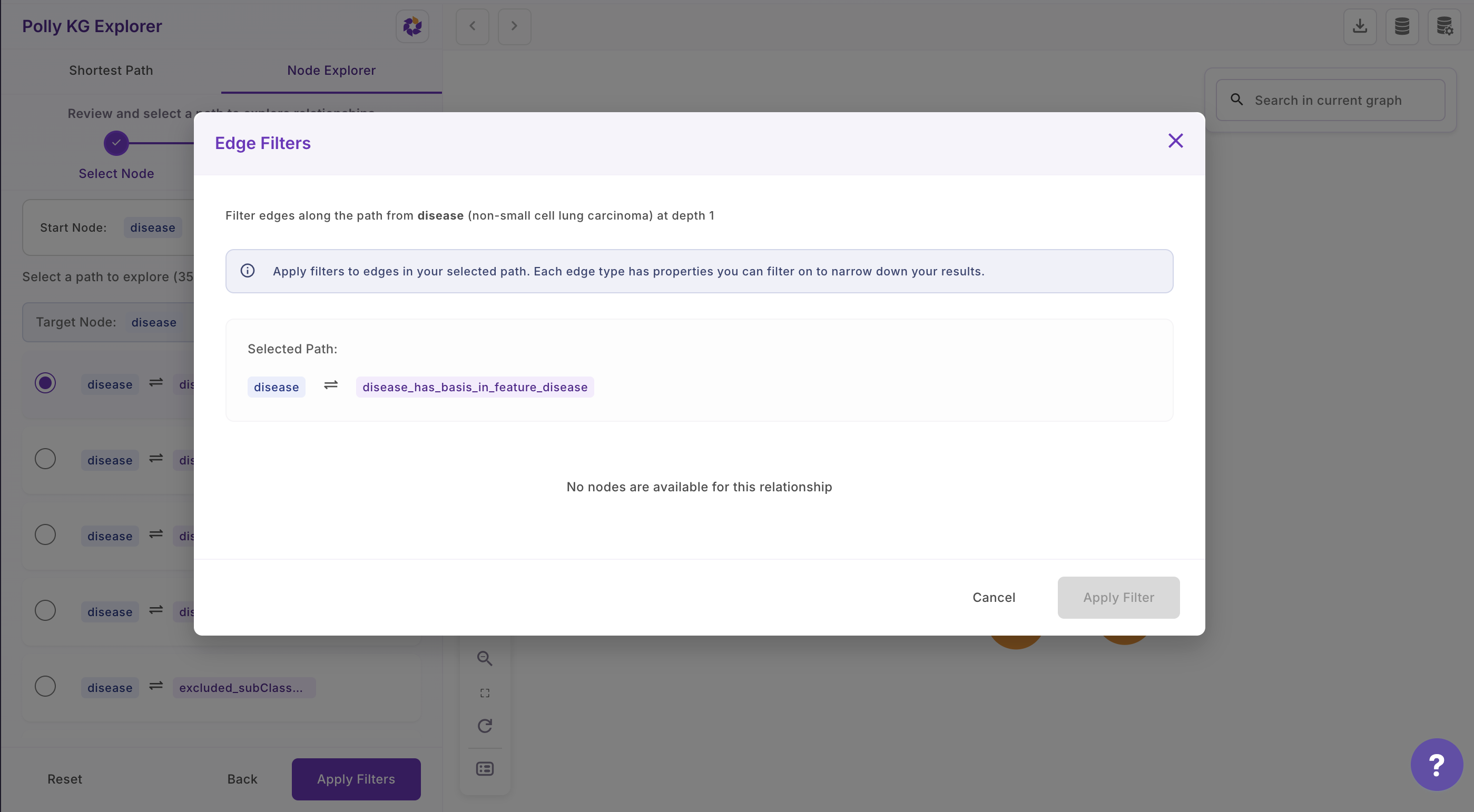

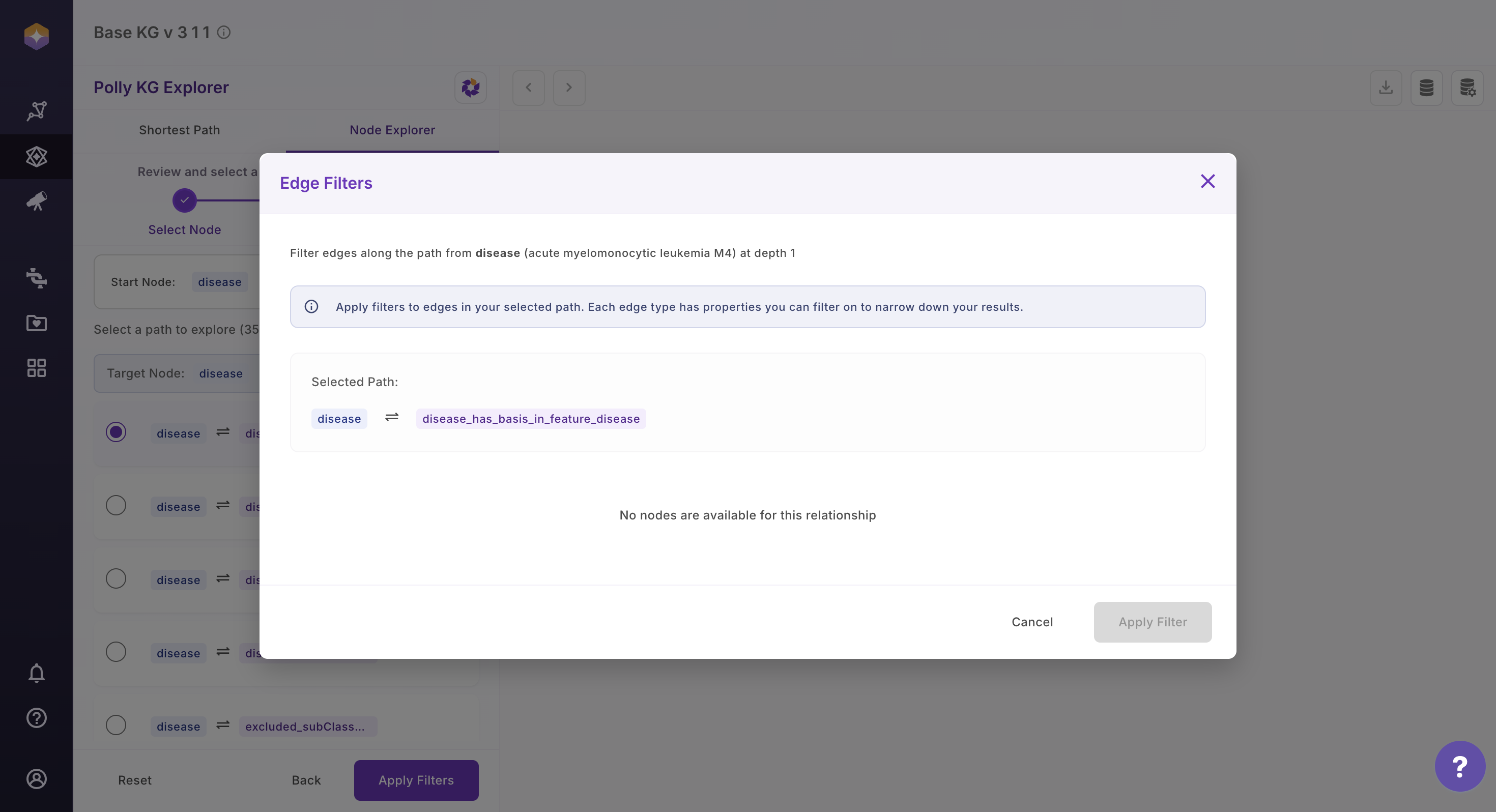

- A modal opens that allows users to filter based on the edge properties and also see the description of each edge property that lets users to select edge properties intuitively for filtering
- Upon filtering, a next page shows all the filtered values that users can Deselect and only select the specific one they are interested in or apply all
- In the last page, users can see the cypher query that run in the backend to fetch the results
Video on User interaction
Note: Please note that the number of edges fetched given a Node term is based on schema and therefore, some associations may not have a Target node that will be shown on the UI as

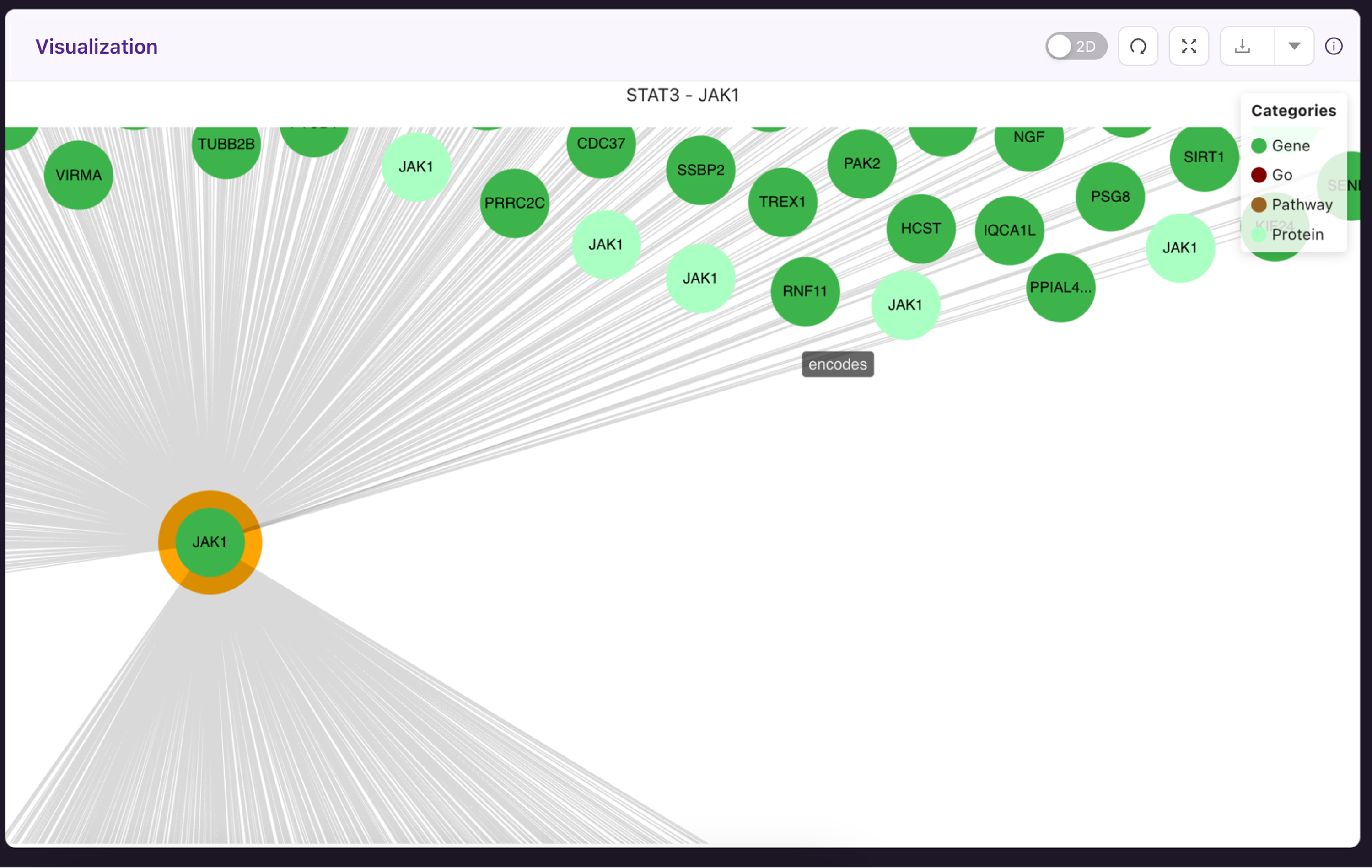

Video on how to see properties of Nodes and Edges
Expand Network

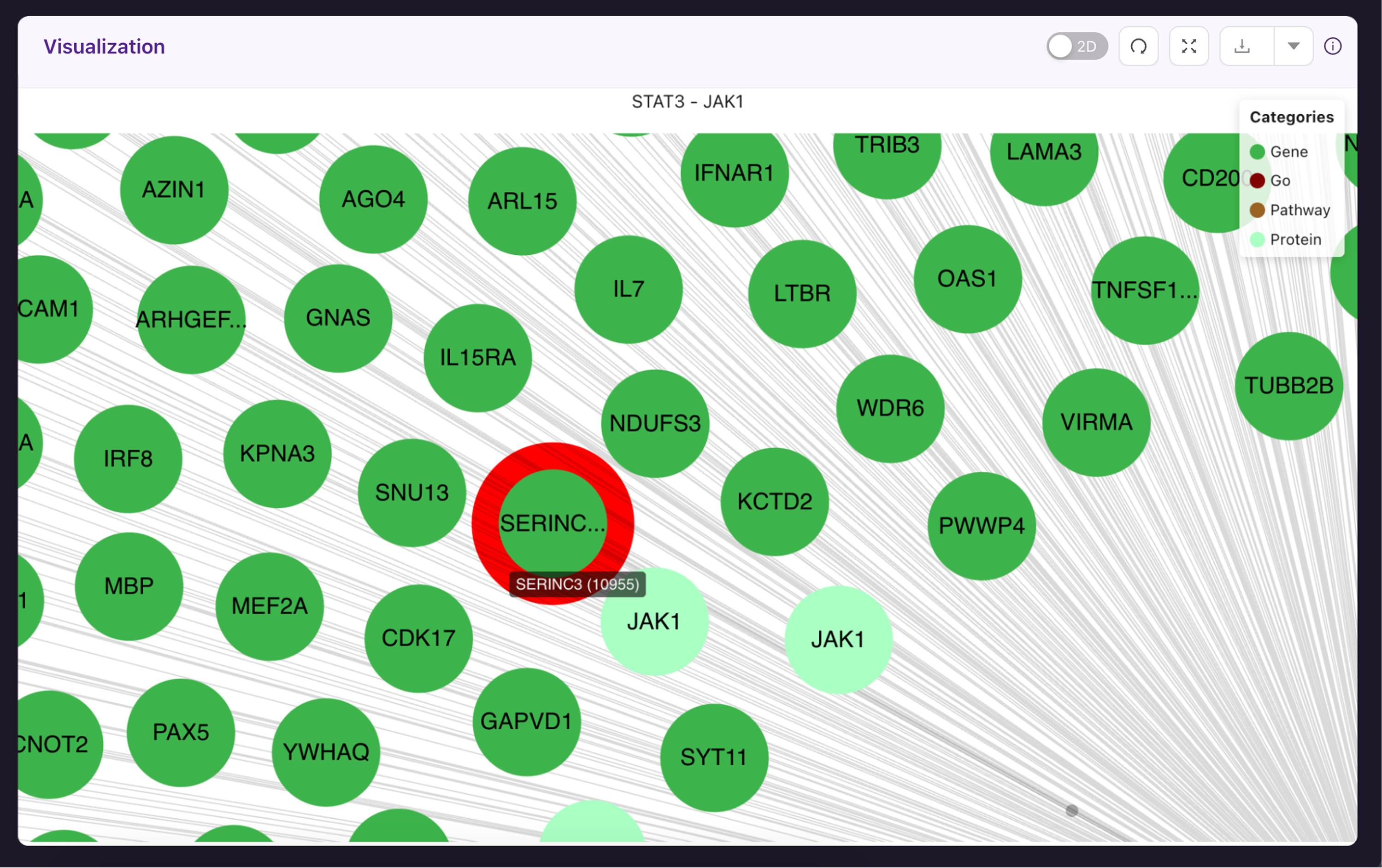

Interacting with Nodes in the Subgraph:
-
Select a Node: Click on any node within the subgraph to begin exploration.
-
View First-Degree Neighbors: A modal panel opens on the right, displaying the first-degree neighbors of the selected node.
-
Filter and Expand: Click Filter & Expand to apply filters based on edge properties. Alternatively, click View Nodes to search for and explore specific terms.
-
Apply Filters: Select or deselect the desired filter options. Click Apply to update the subgraph view.
-
Navigate Changes: Use the Previous button to remove the most recent node expansion. Use the Next button to undo the change and reapply the expansion.
Video on User interaction
Users can use this Journey to keep expanding the network iteratively.
